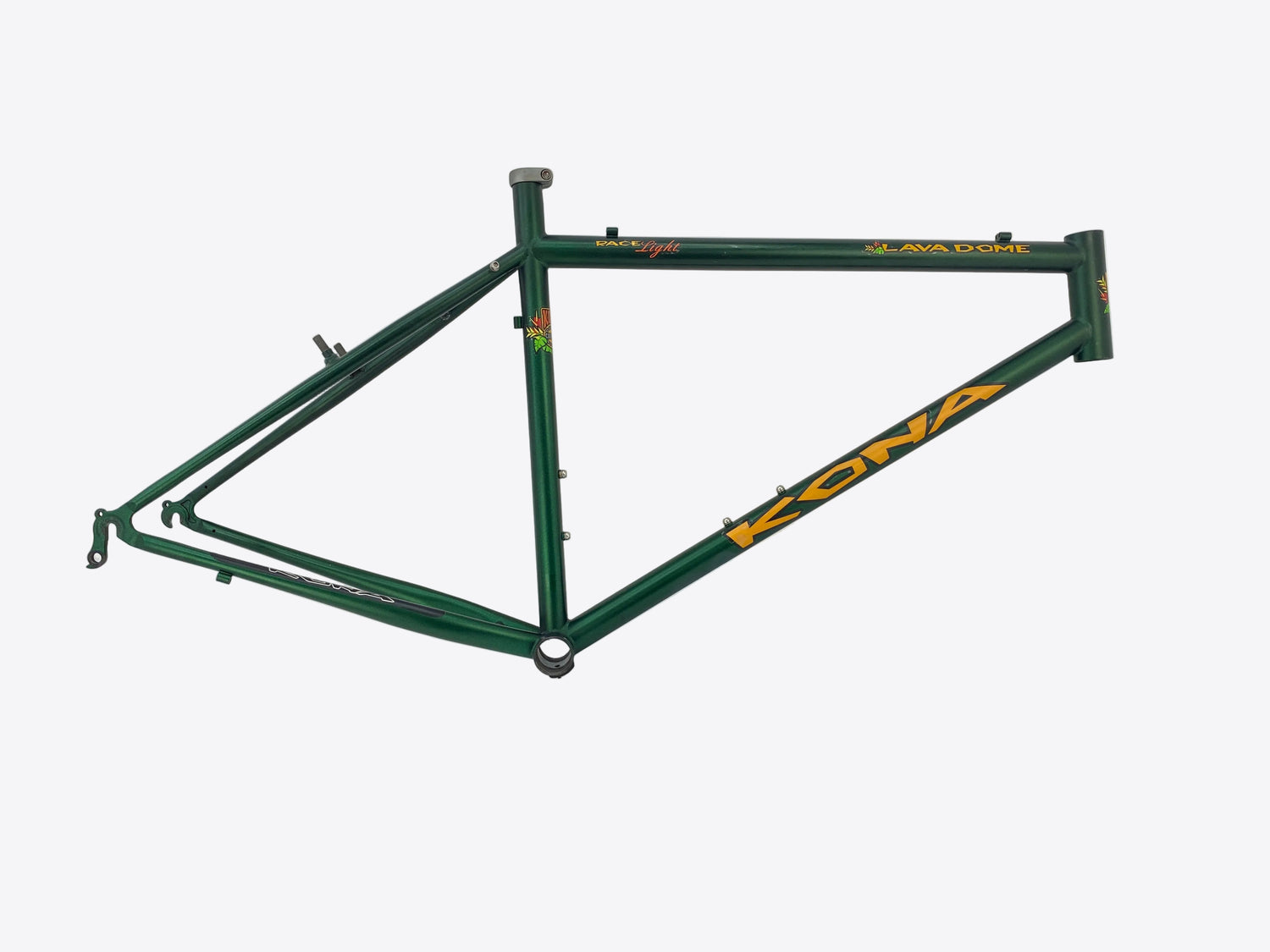

• main view of the frame

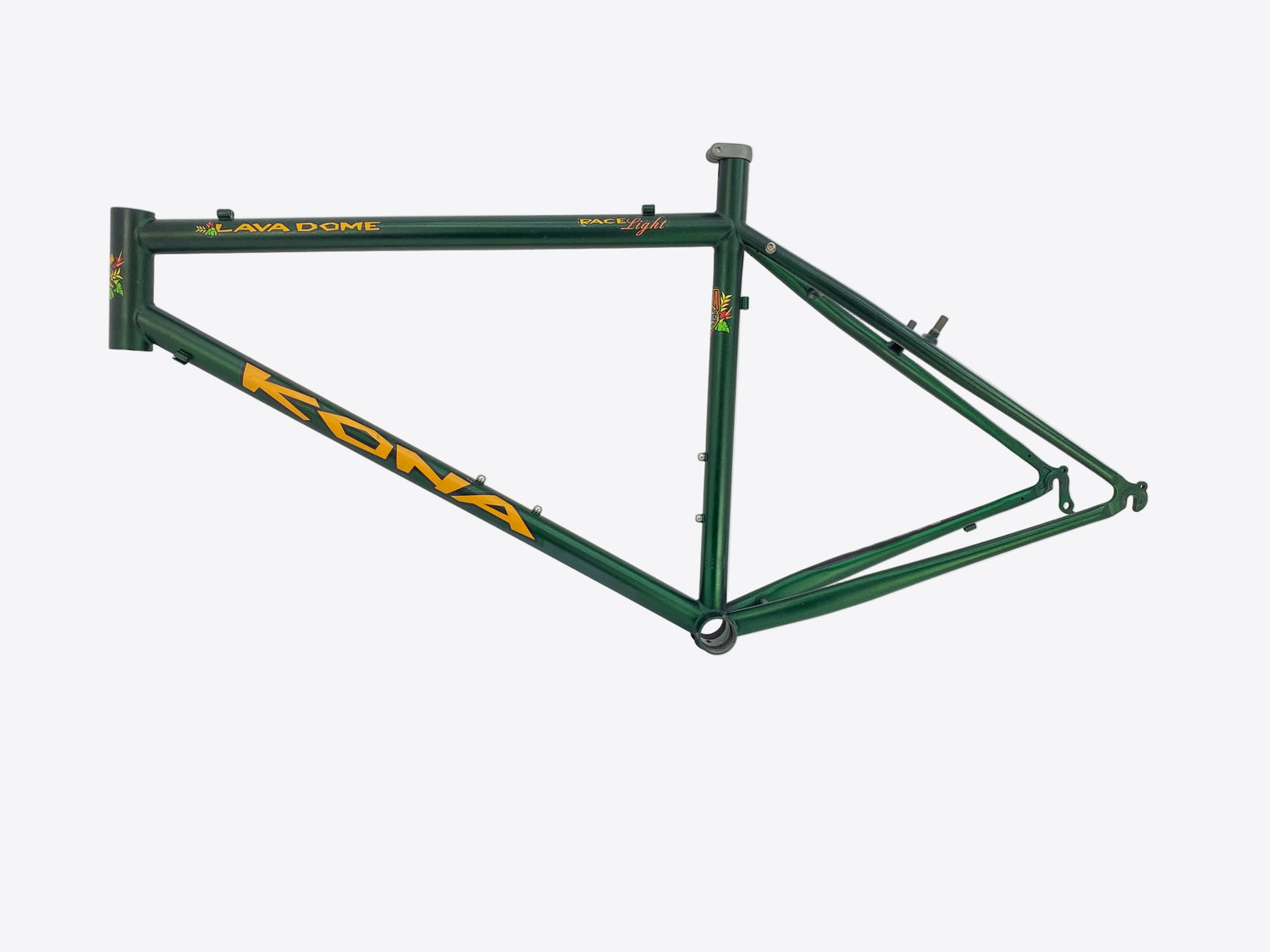

  • left side view of the frame

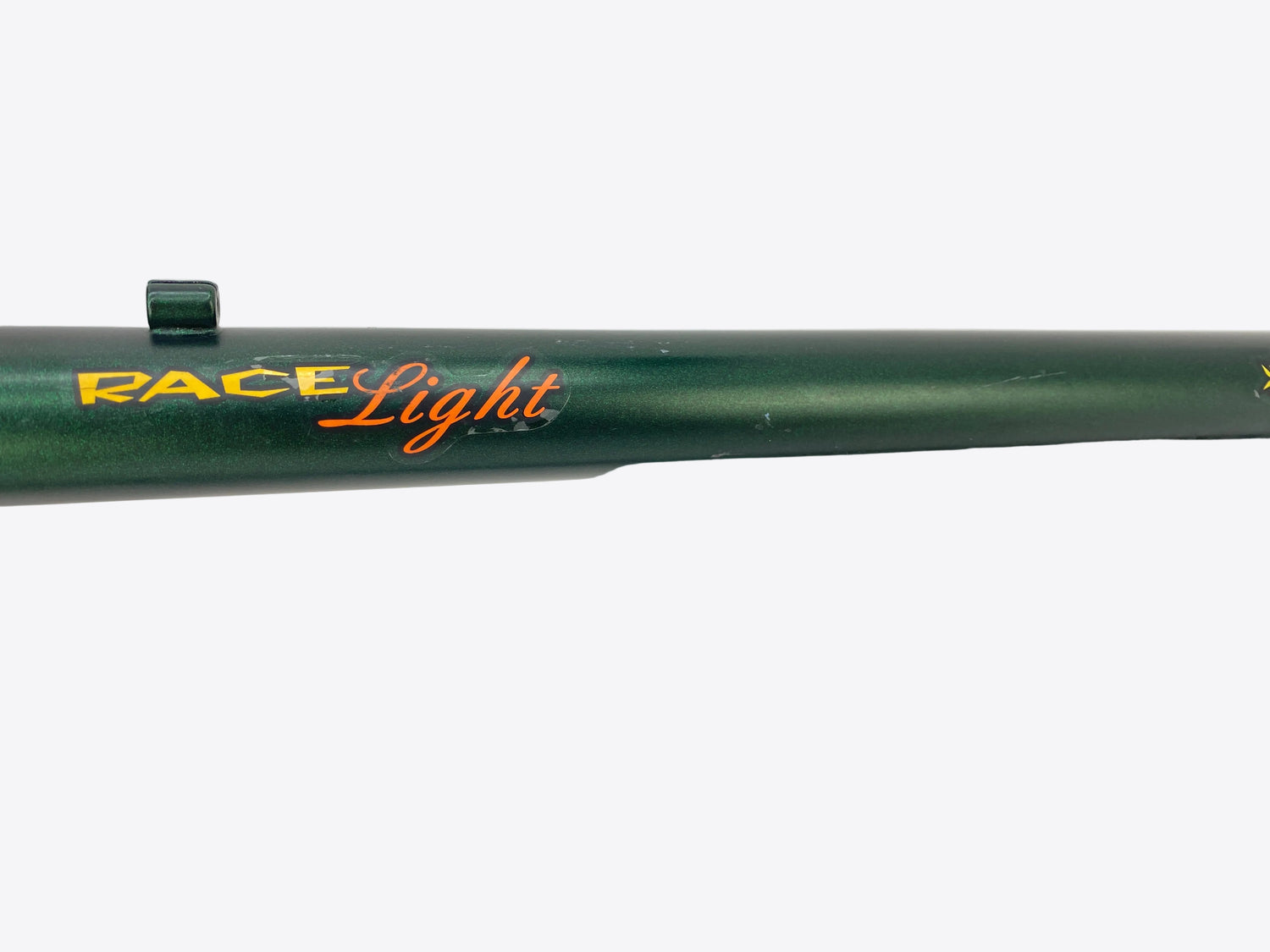

  • view of the top tube

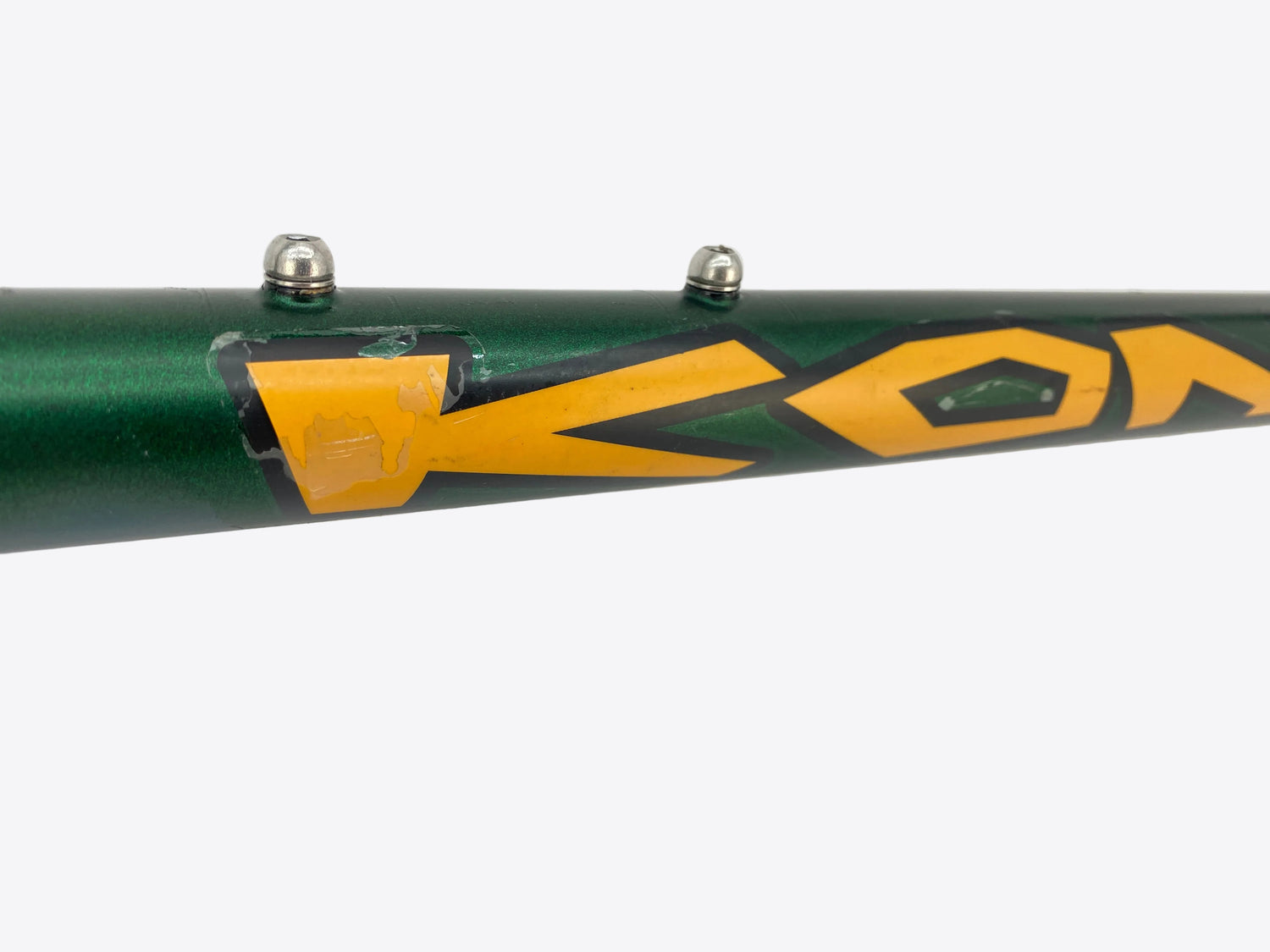

  • close up of the down tube

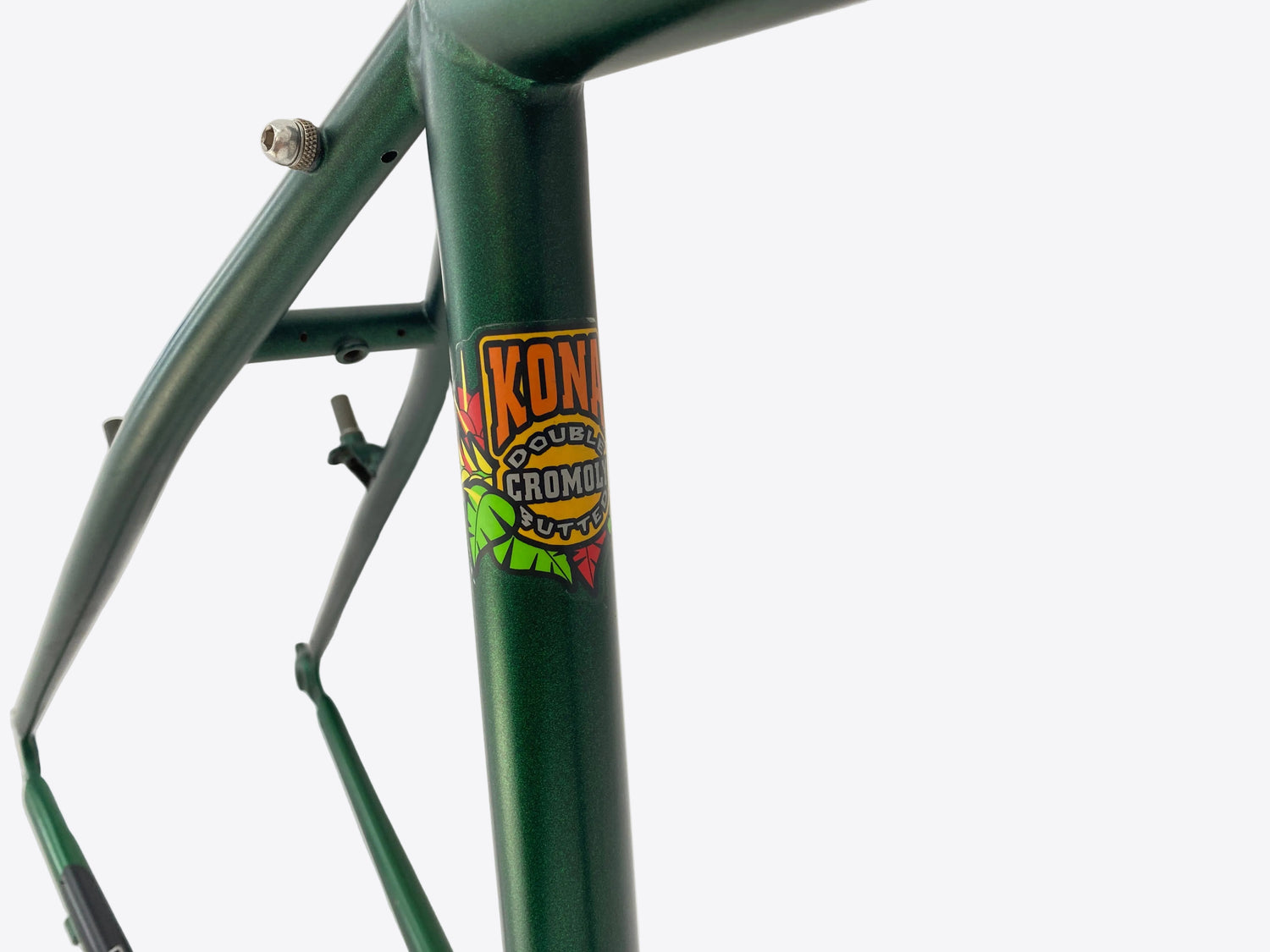

  • close up of the seat tube

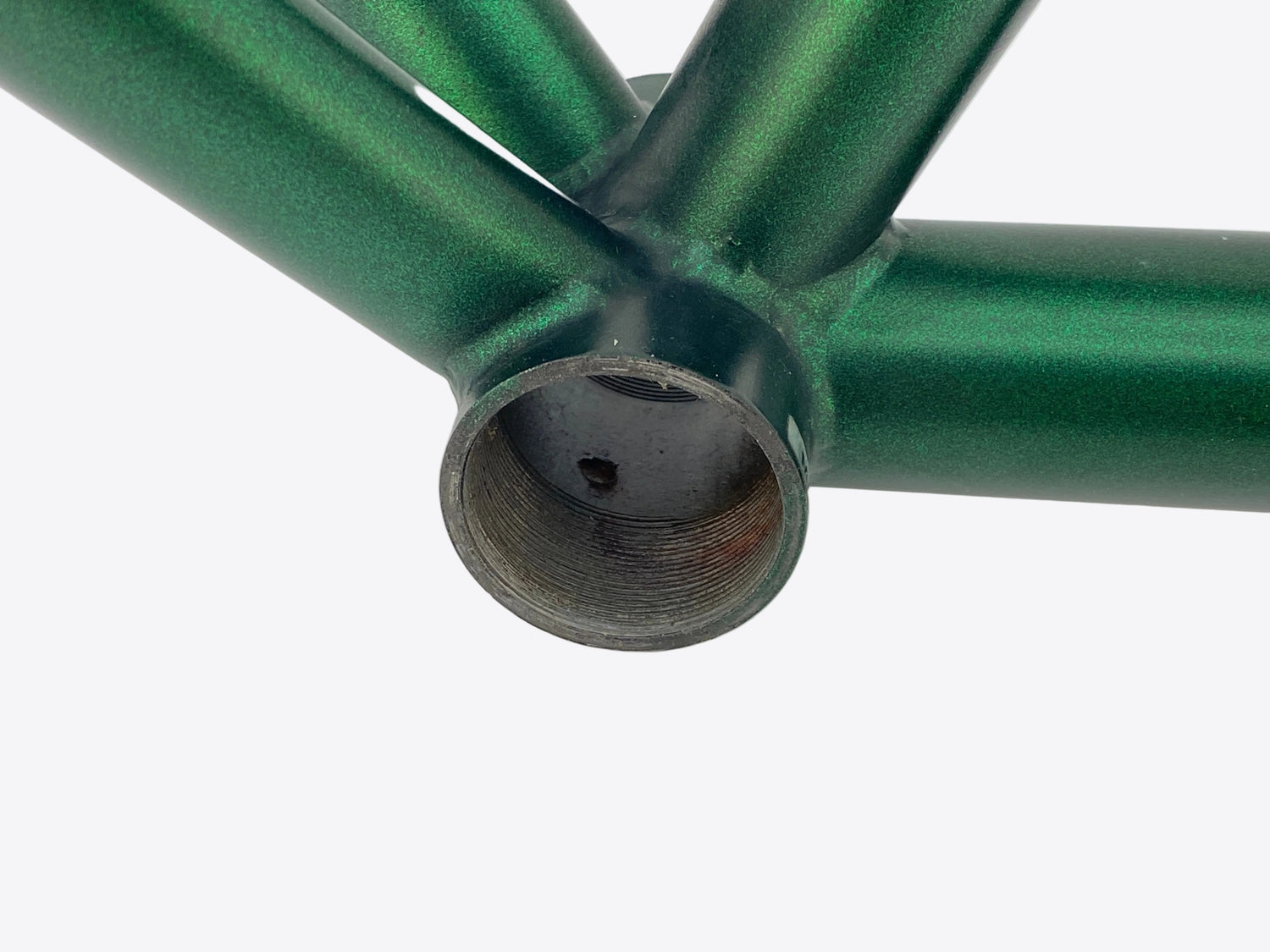

  • close up of the bottom bracket

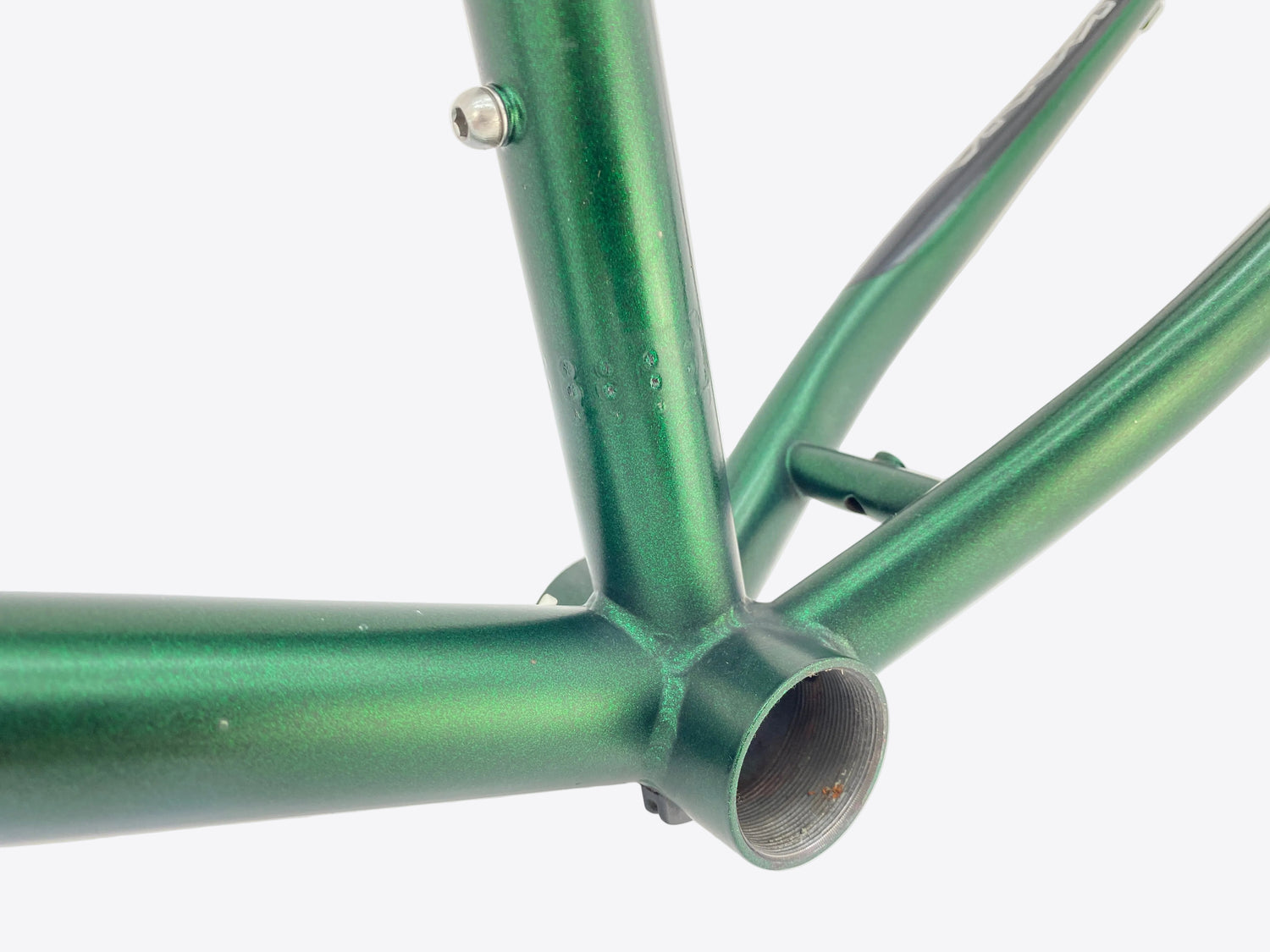

  • paint chips on the seat tube

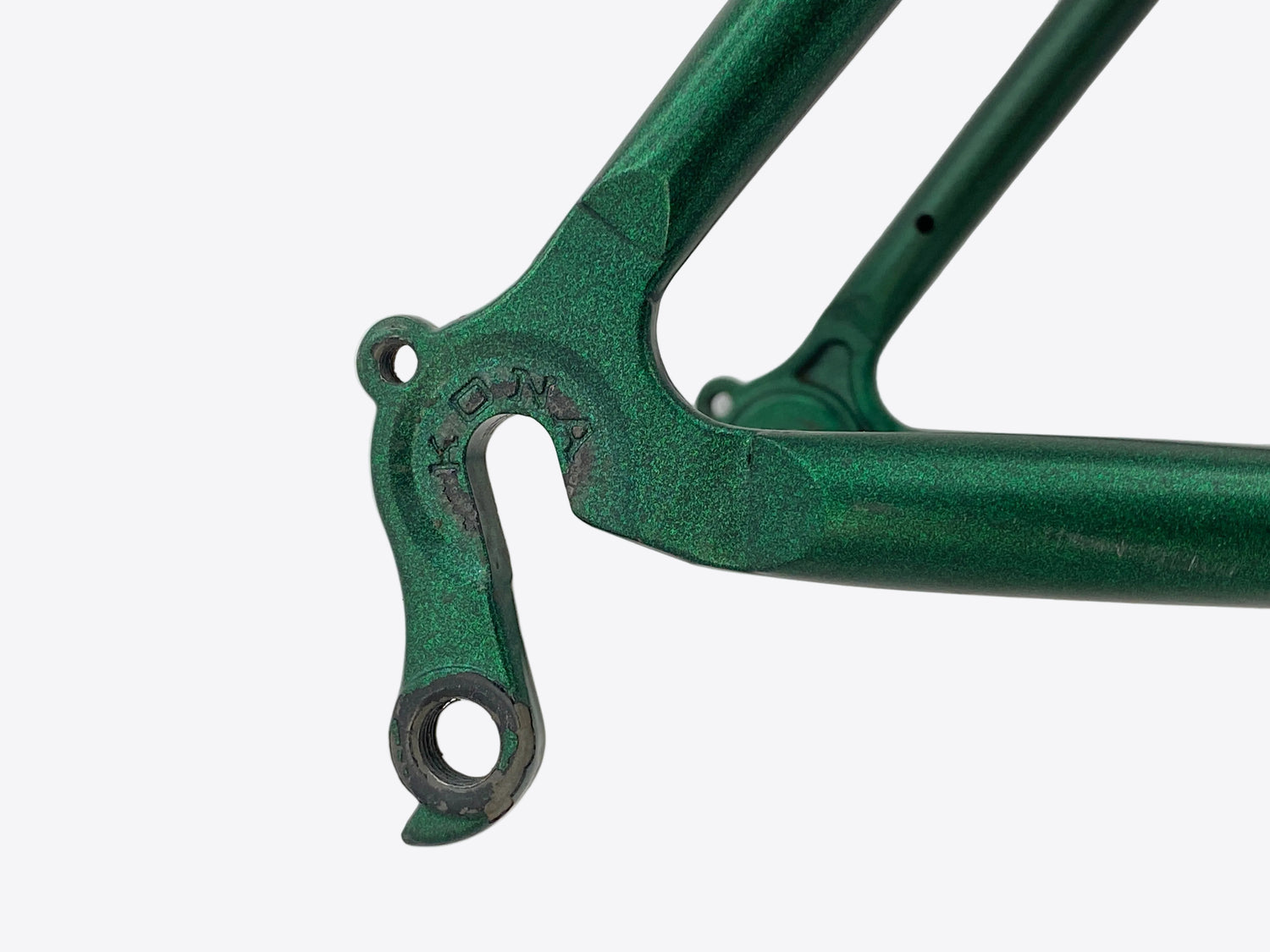

  • close up of the rear drop out

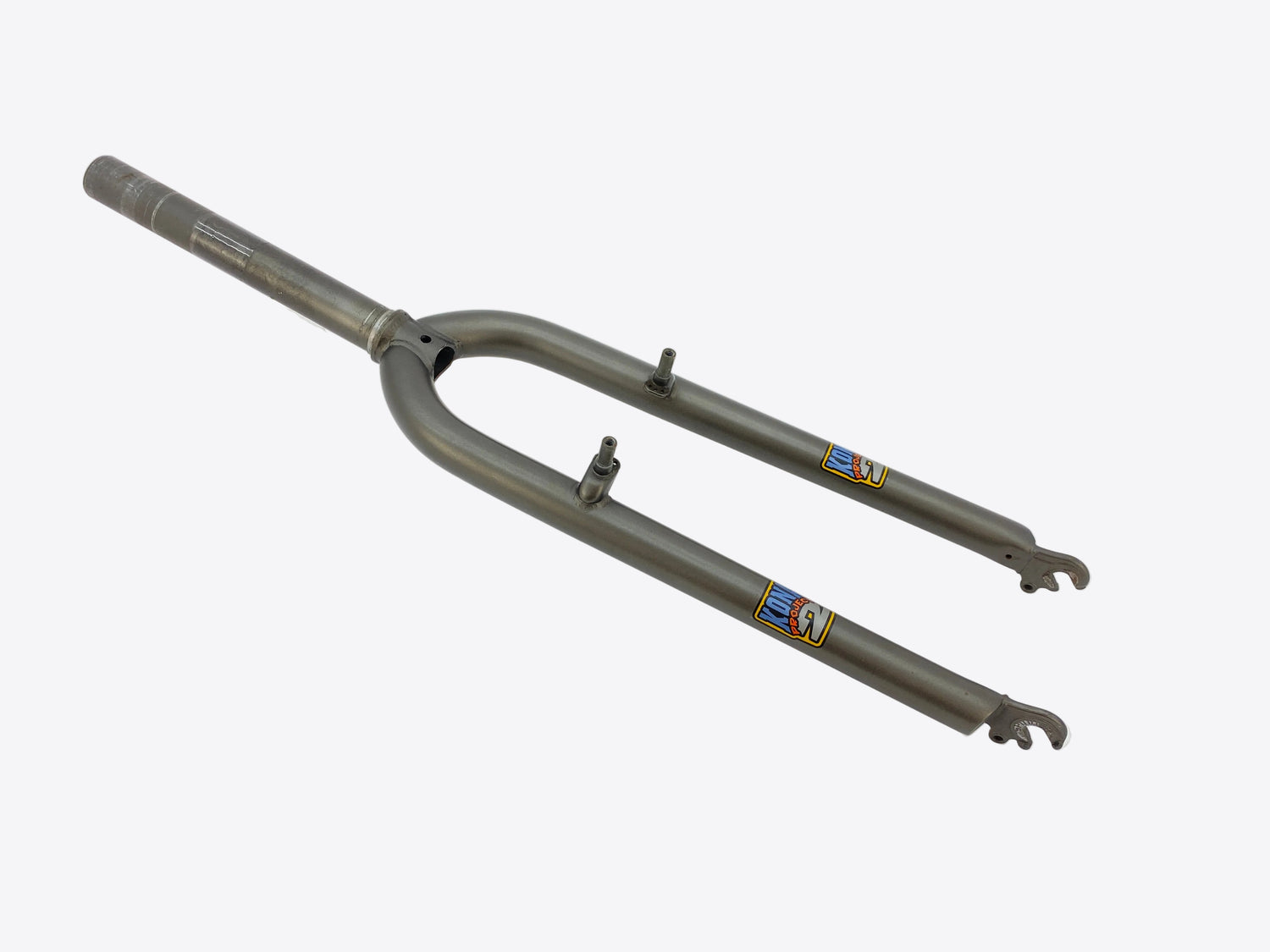

  • main view of the fork

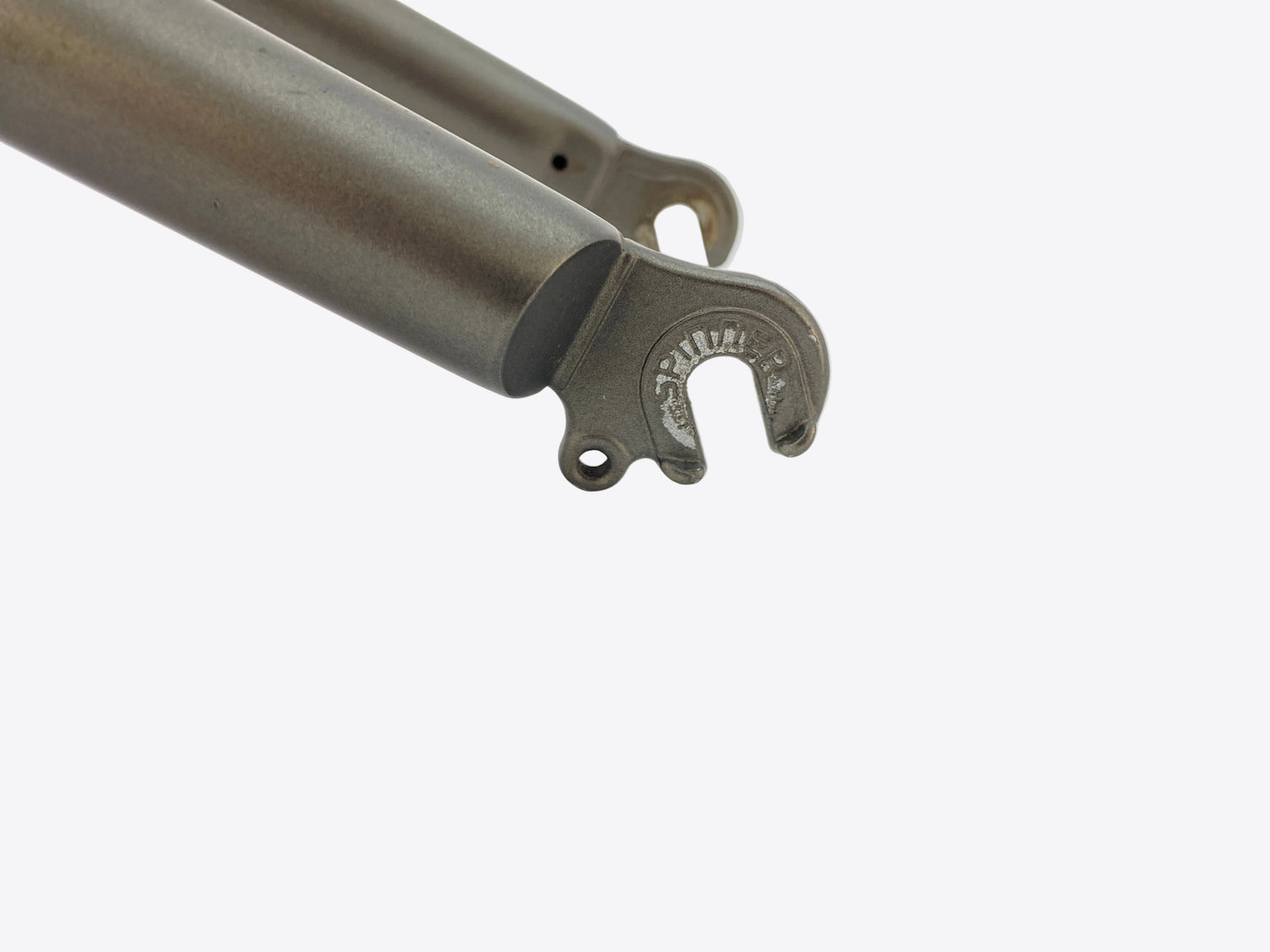

  • close up of the fork drop outs

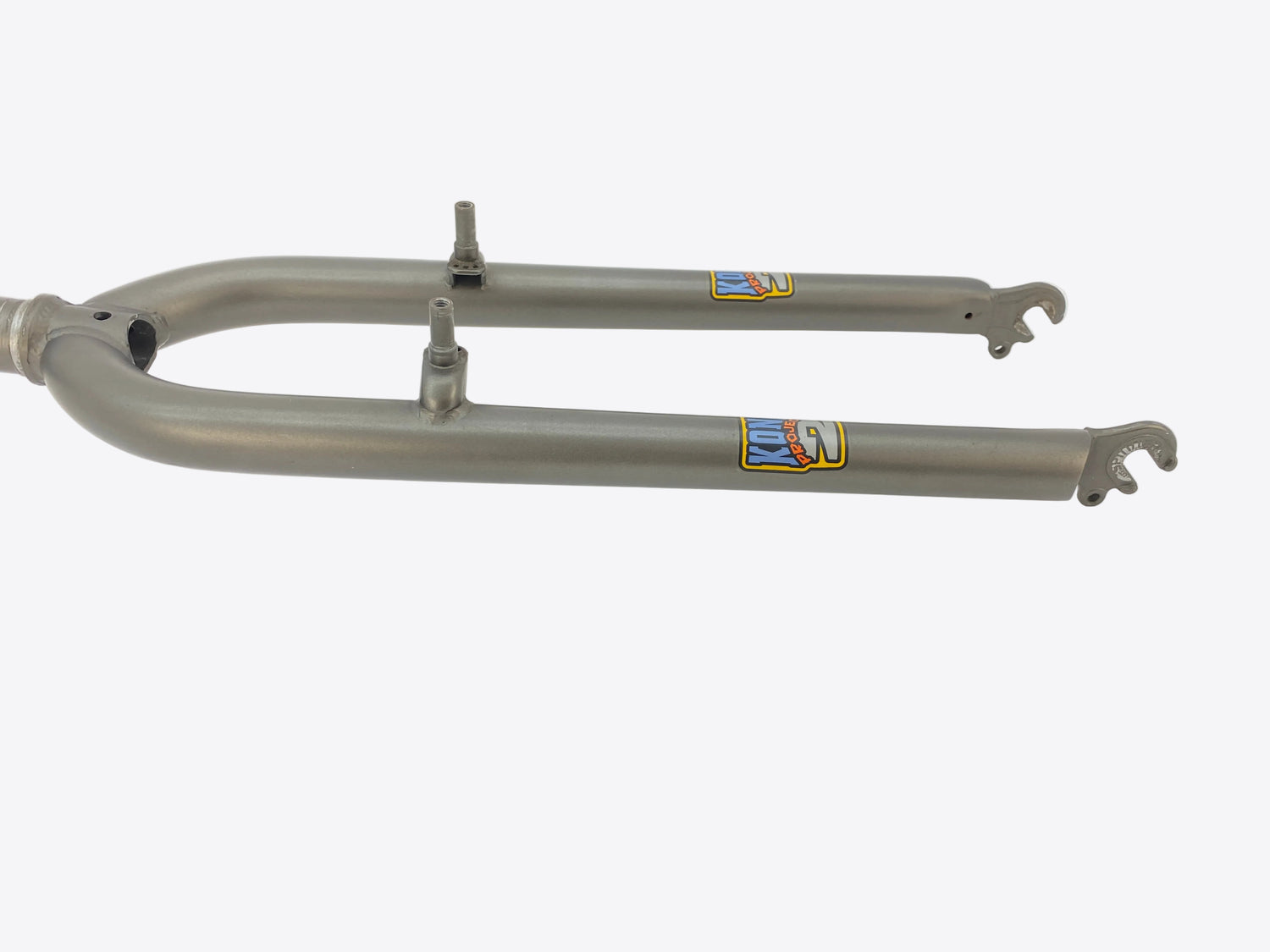

  • side view of the fork

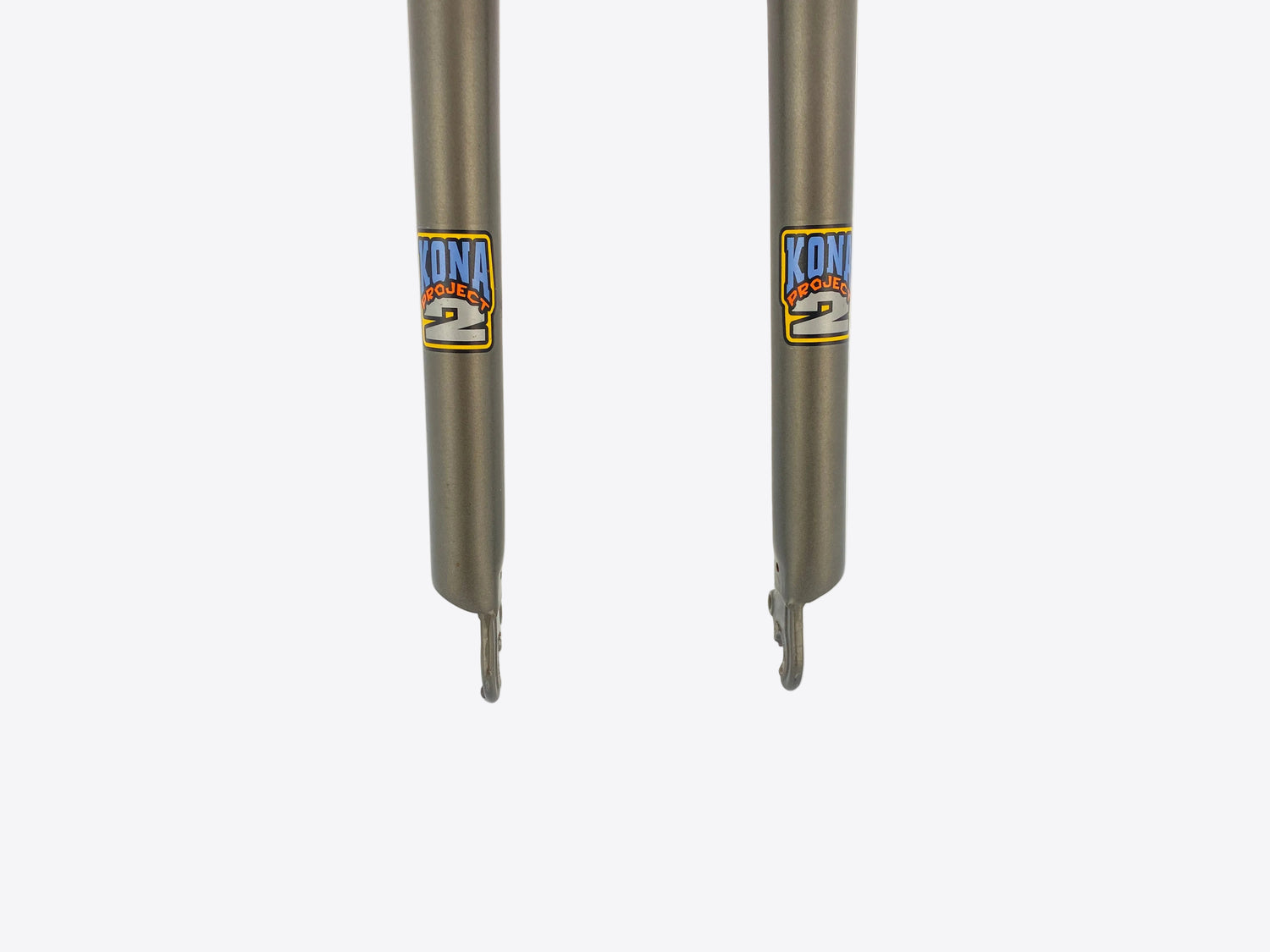

  • front view of the fork

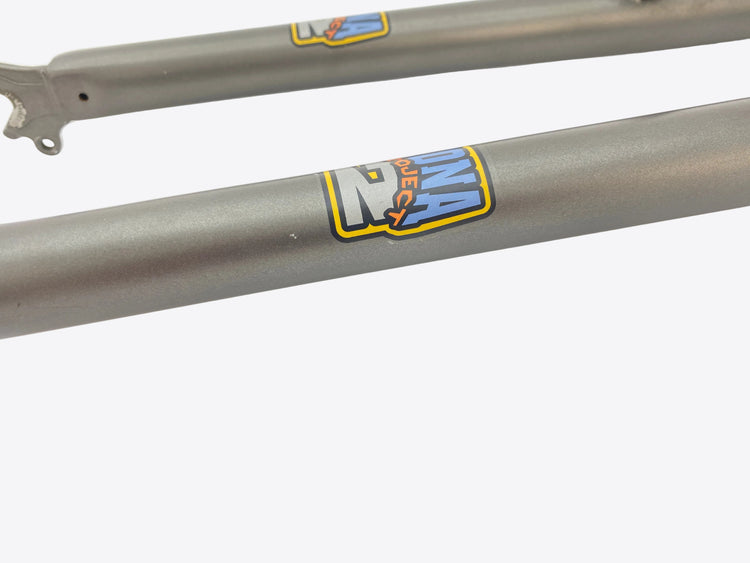

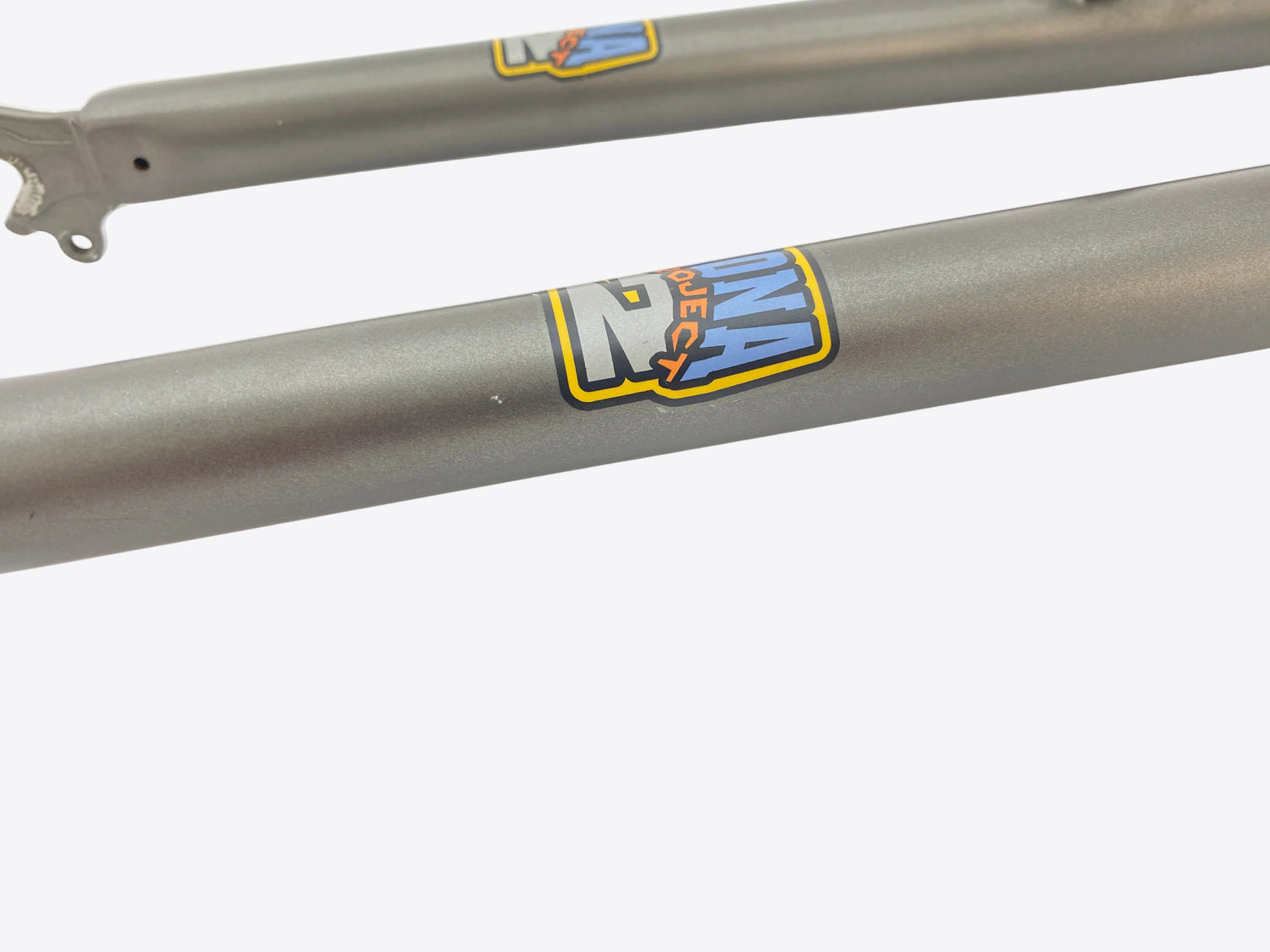

  • scratch on the left fork leg

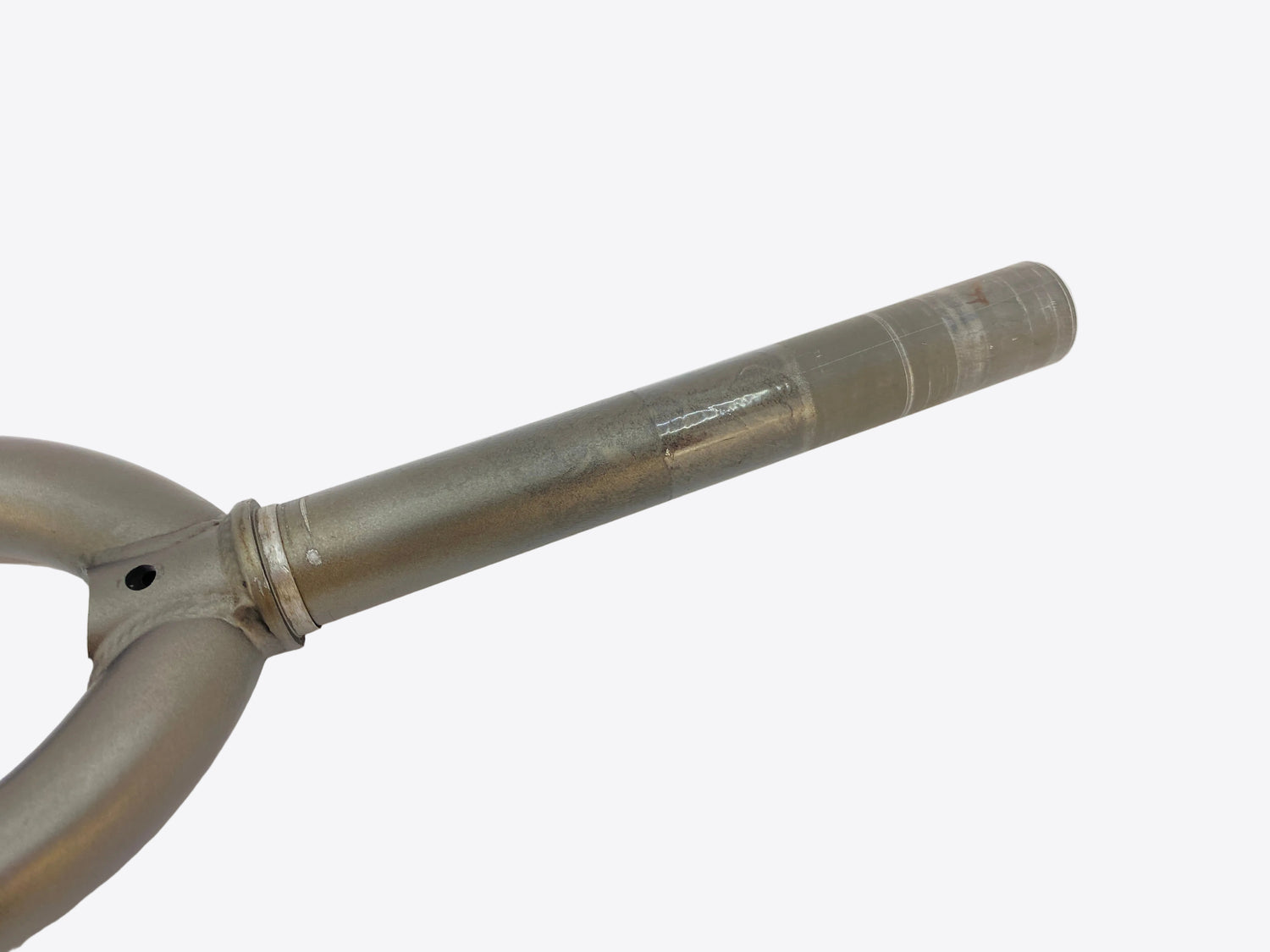

  • view of the fork steering tube

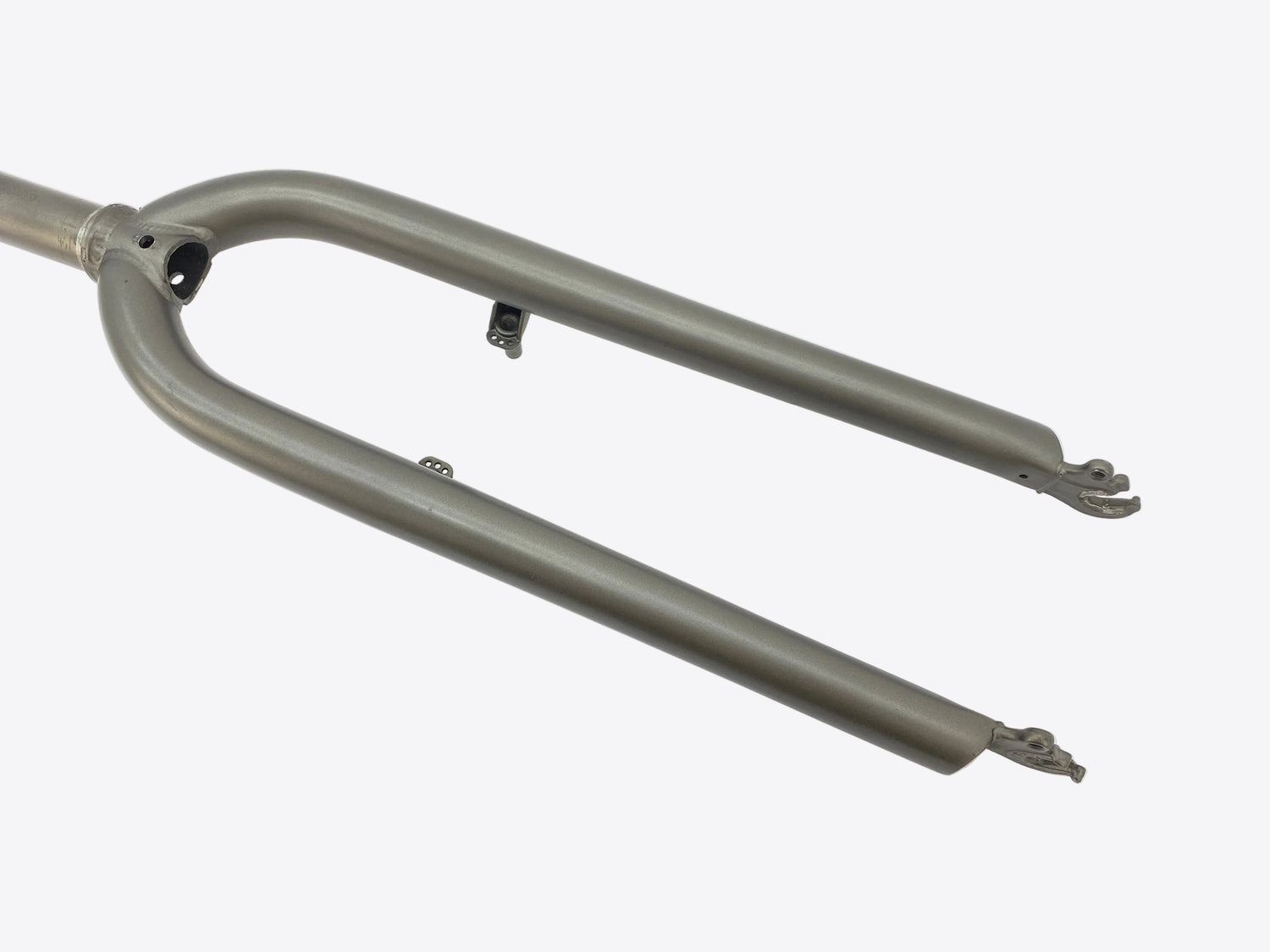

  • rear view of the fork

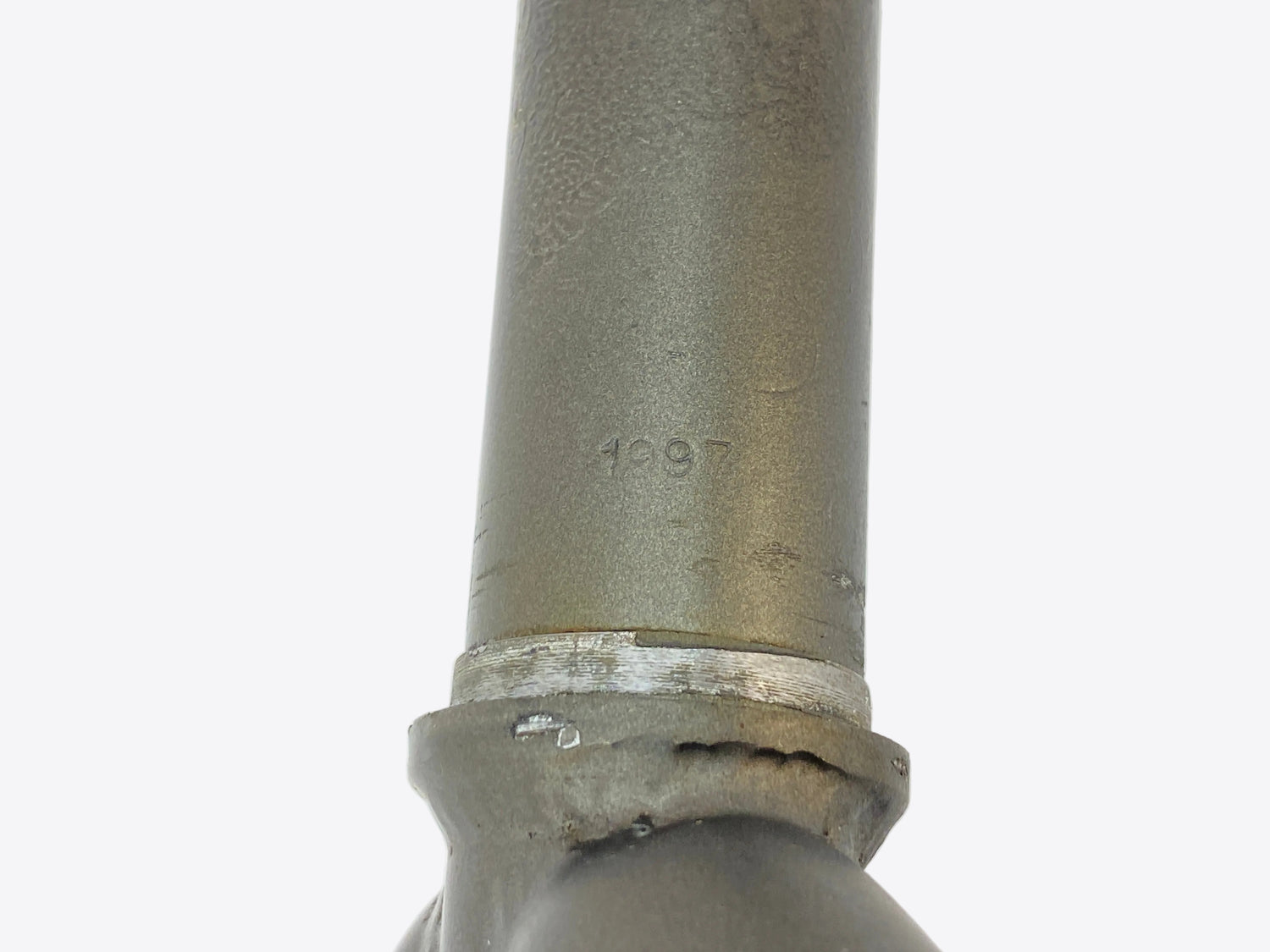

  • close up of the fork crown
1 16

Kona

Kona Lava Dome Race Light Frameset - 19 inch

Kona Lava Dome Race Light Frameset in very good condition. Late 1990's vintage. Scratches on top tube and down tube as shown. Very few scratches overall. Bottom bracket threads clean. Custom Kona rear dropouts. Includes Kona Project 2 fork in very good condition.

Tech Specs:

  • Material: Kona double butted CroMoly
  • Seat tube:  19 inch (c-t)
  • Top tube: 23 inch (eff.)
  • Wheel Size: 26 inch
  • Max tire width: 2.2 inch
  • Axle: 9mm x 100mm, 10mm x 135mm
  • Bottom Bracket: 68mm threaded
  • Brake type: cantilever
  • Front Derailleur: 28.6mm bottom pull
  • Seat post: 27.0mm
  • Steering tube: 1 1/8 dia., 200mm
  • Crown race: 30mm
