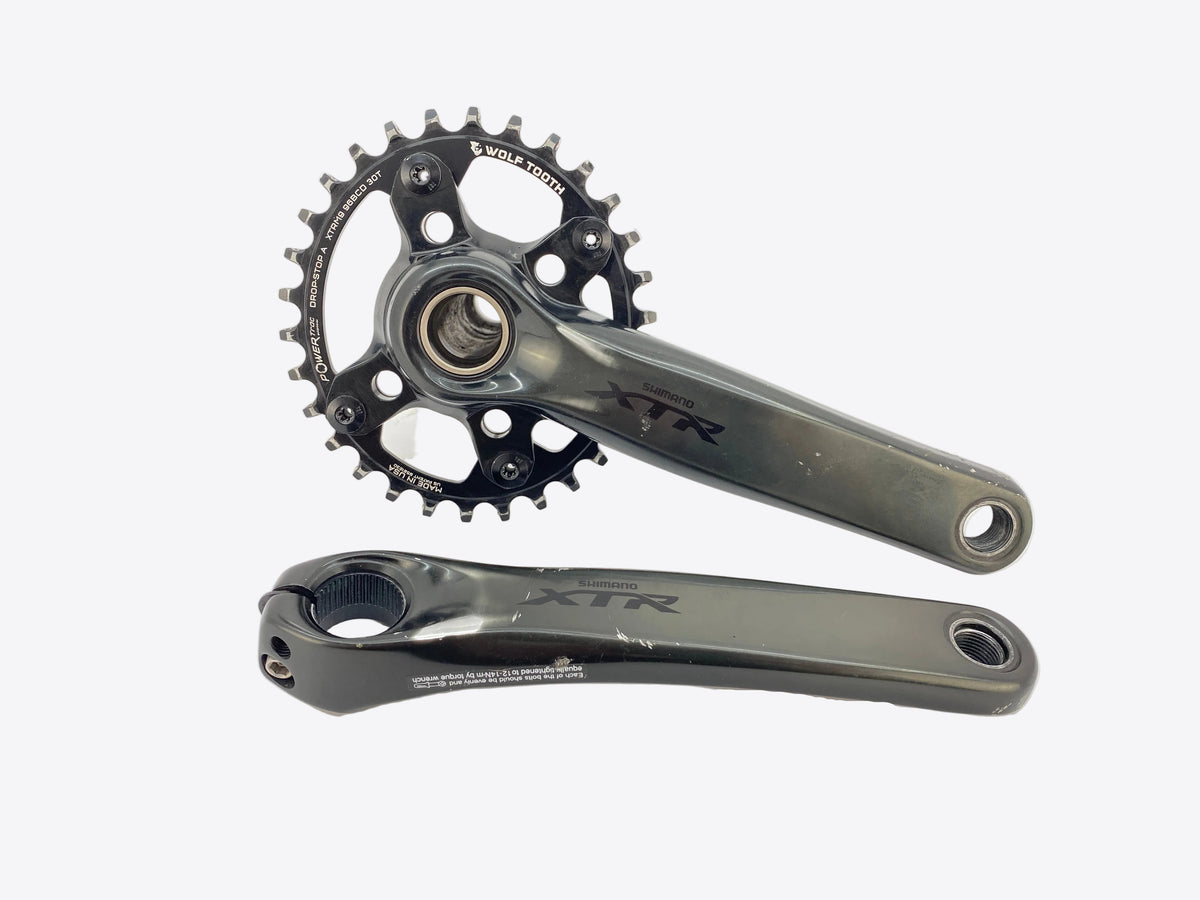

• main view of the cranks

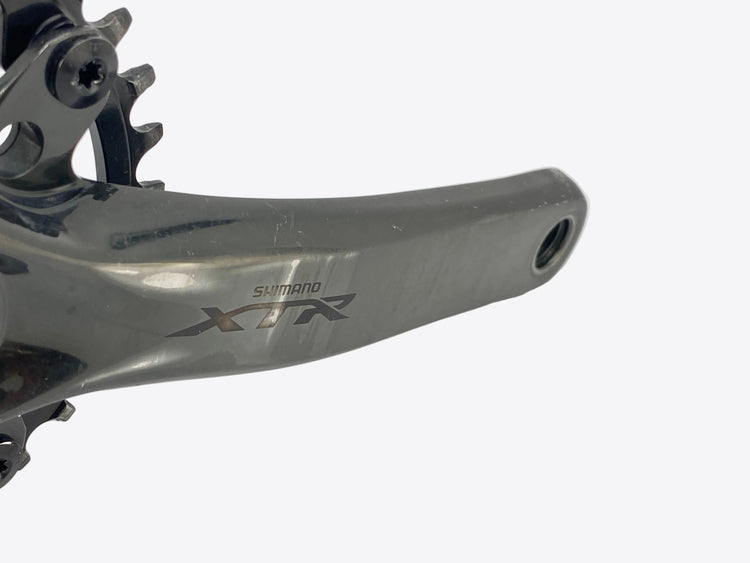

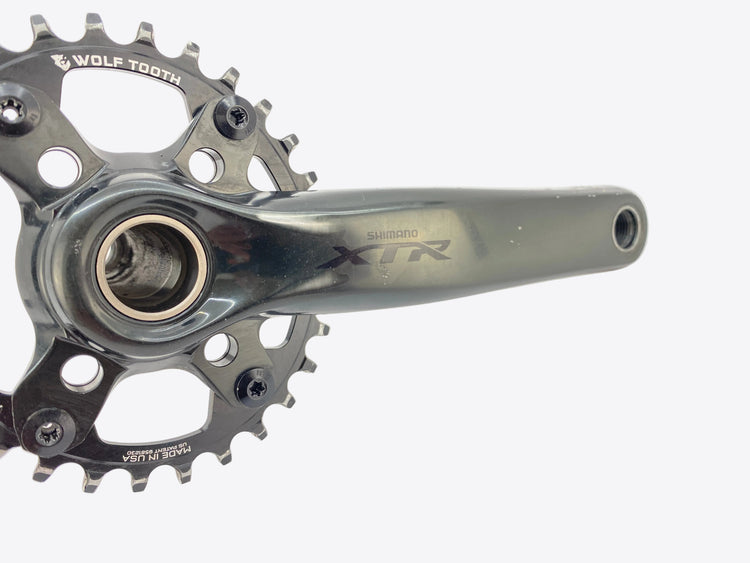

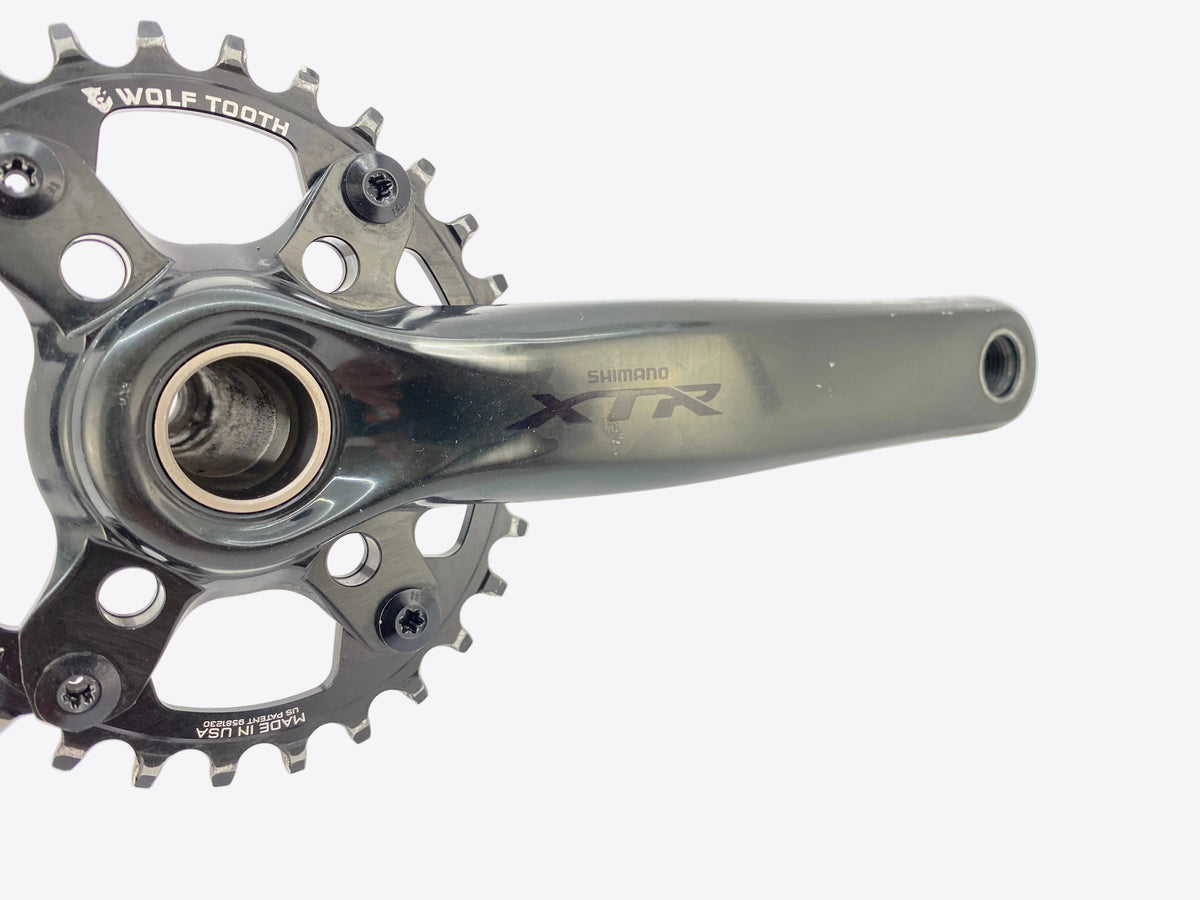

  • close up of the right crank arm

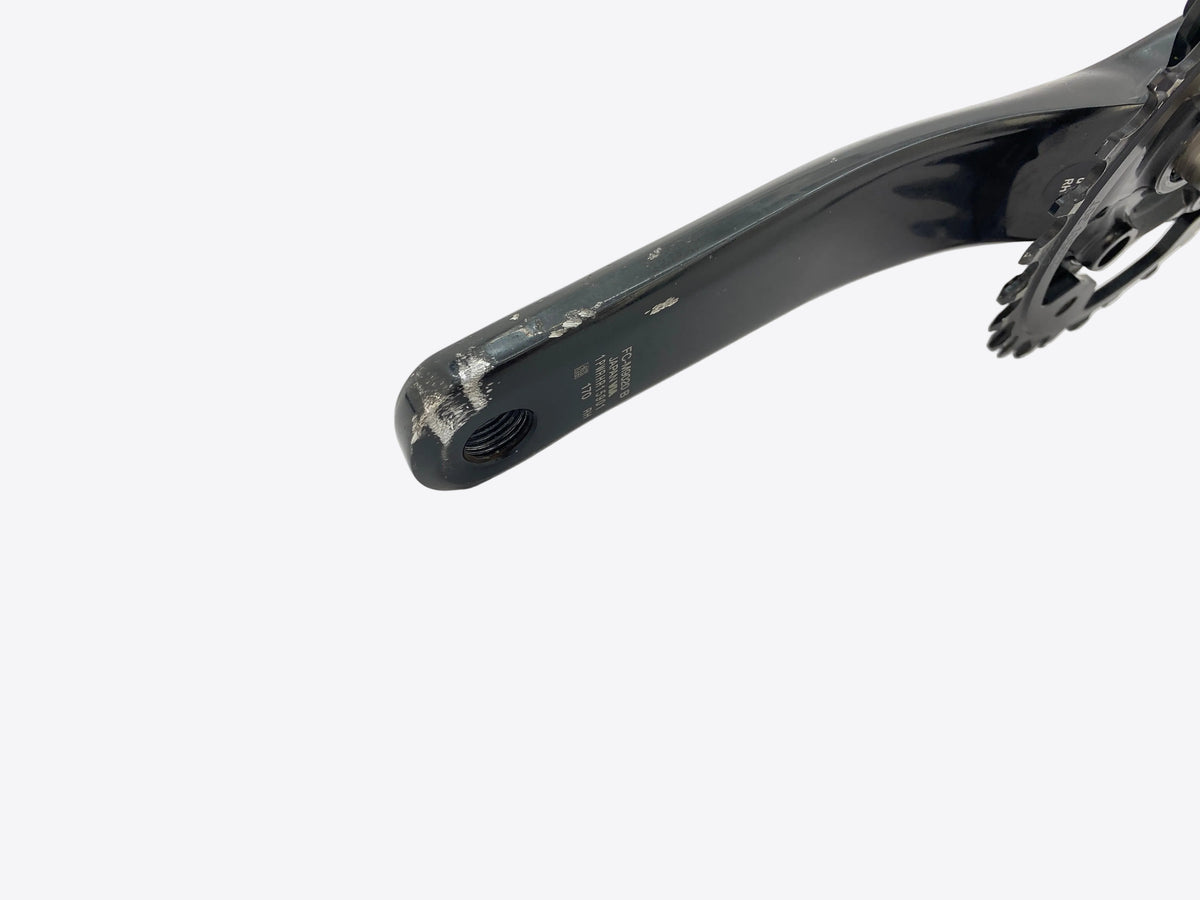

  • close up of the right crank arm end
  • close up of the chainring

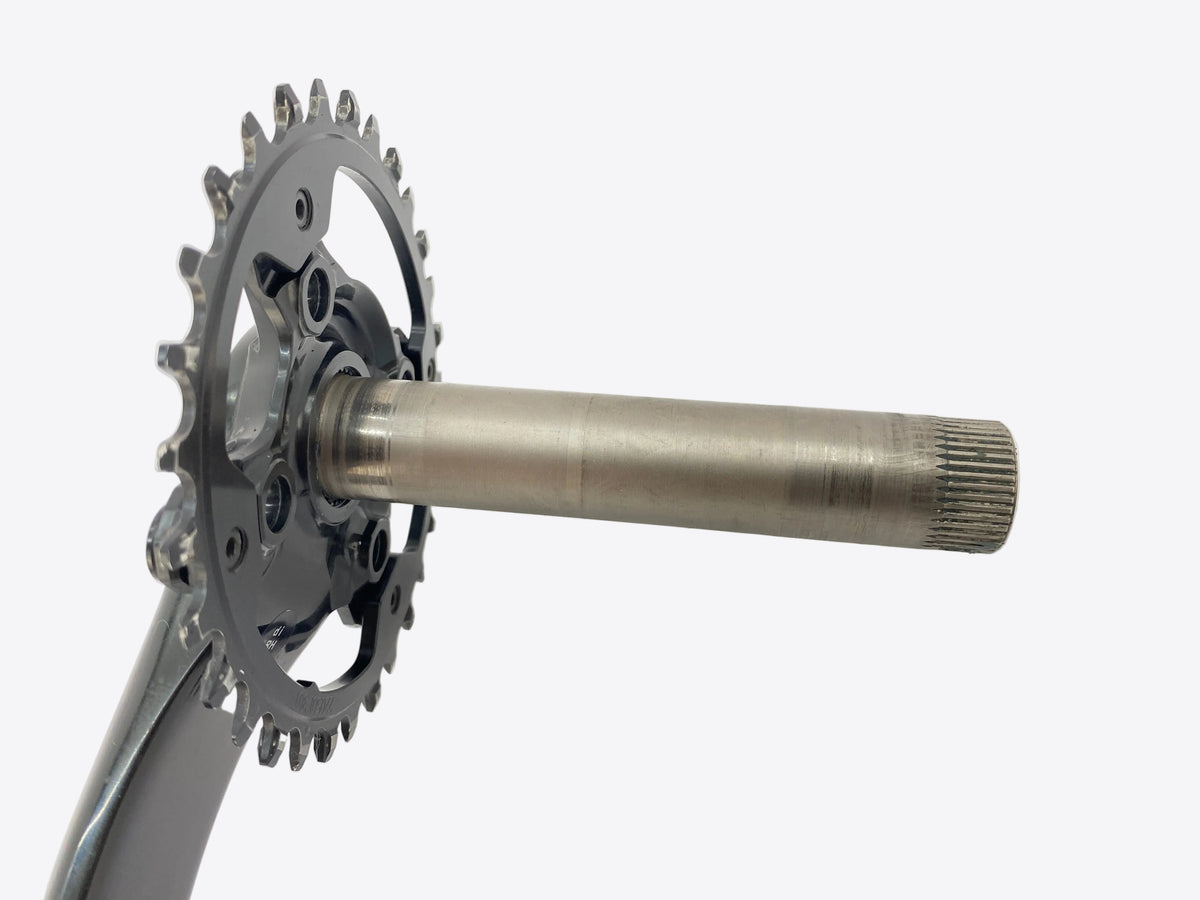

  • close up of the spindle
  • close up of the model number

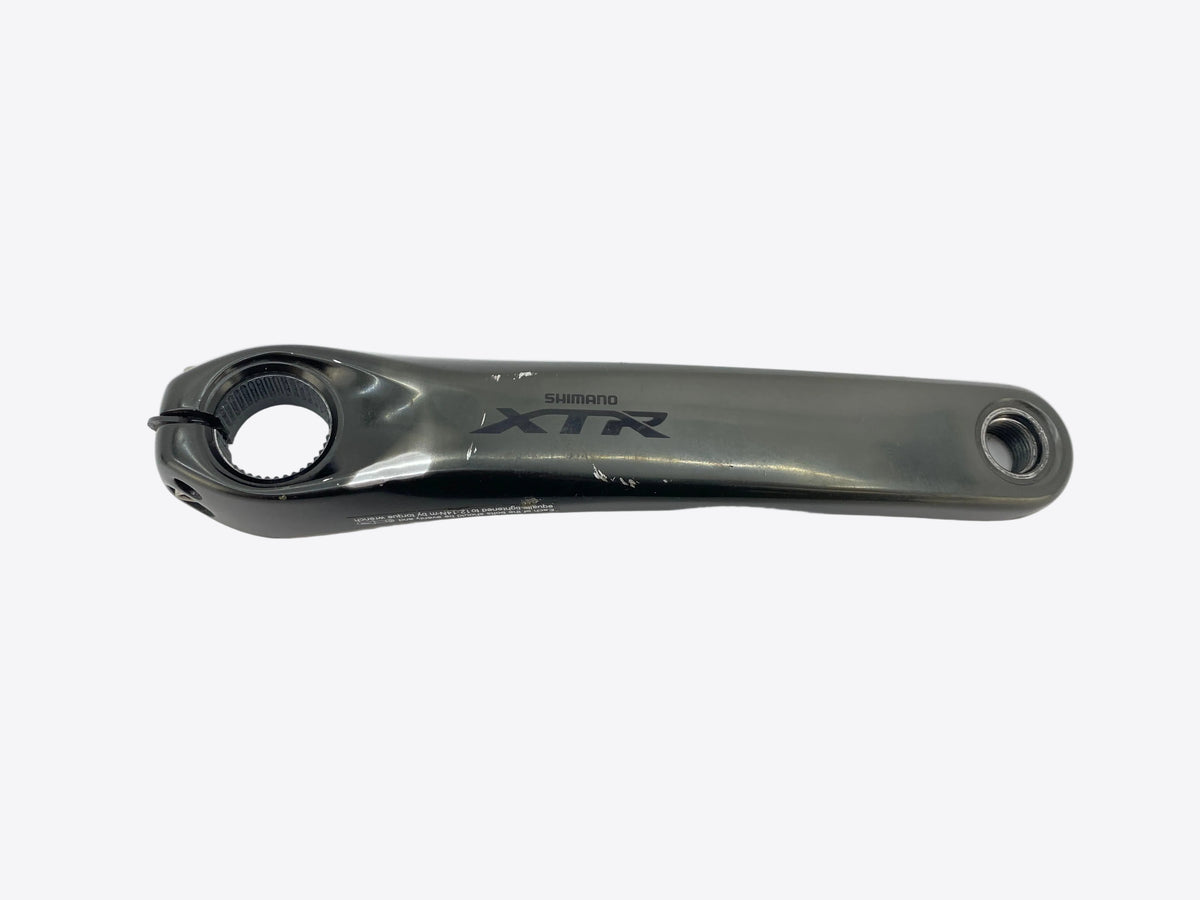

  • close up of the left arm

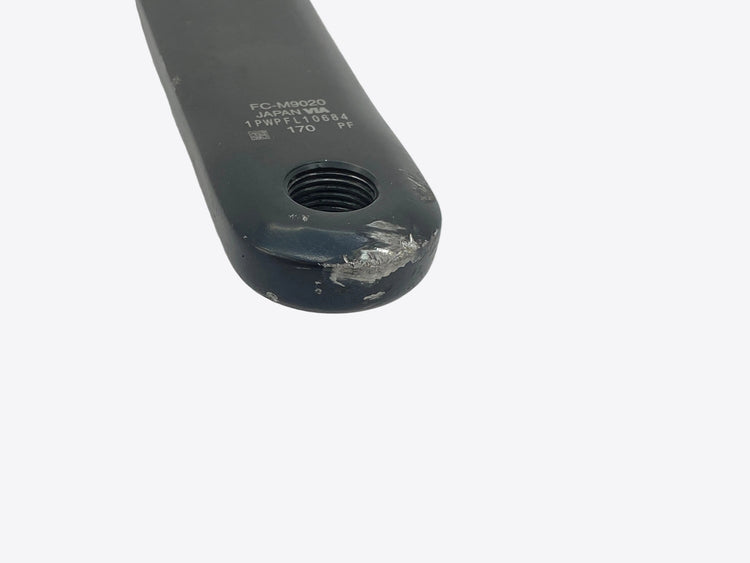

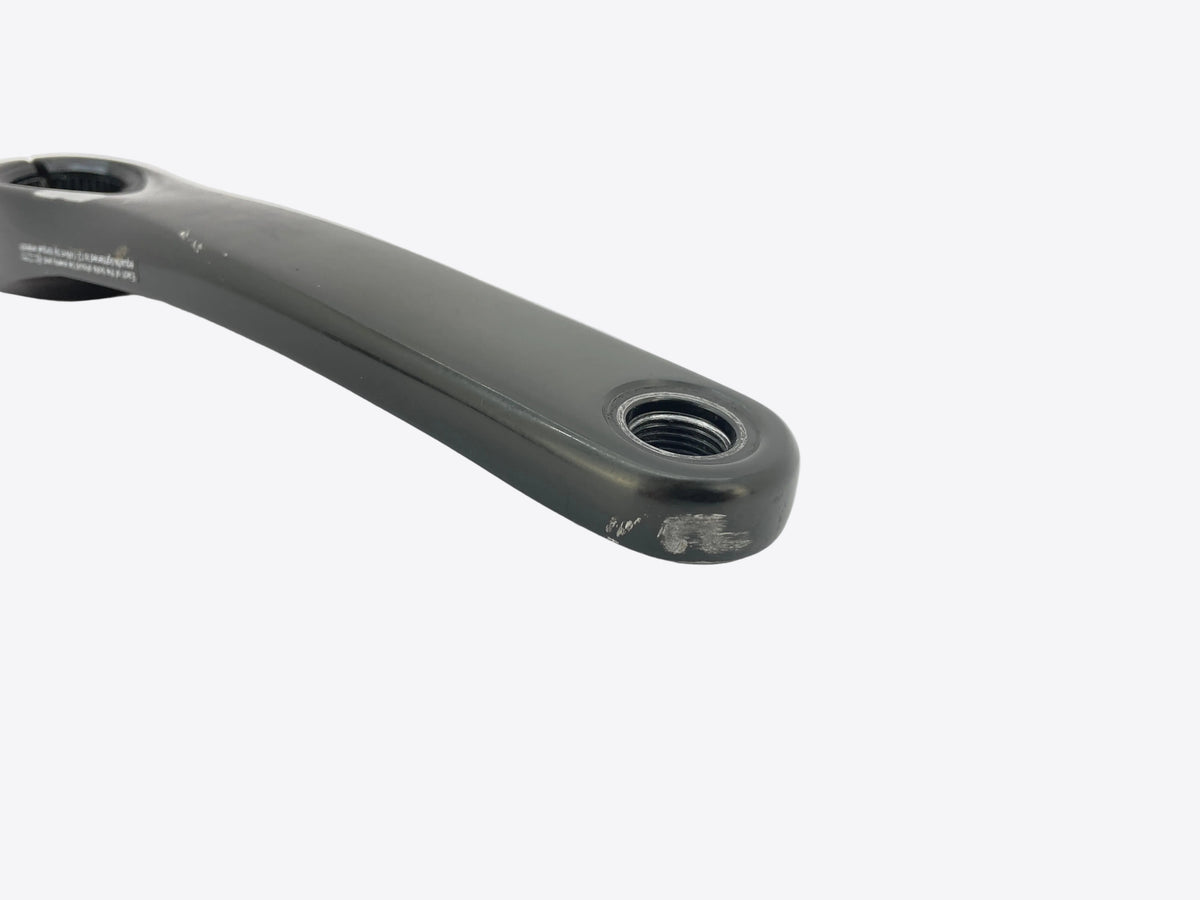

  • close up of the left crank arm end

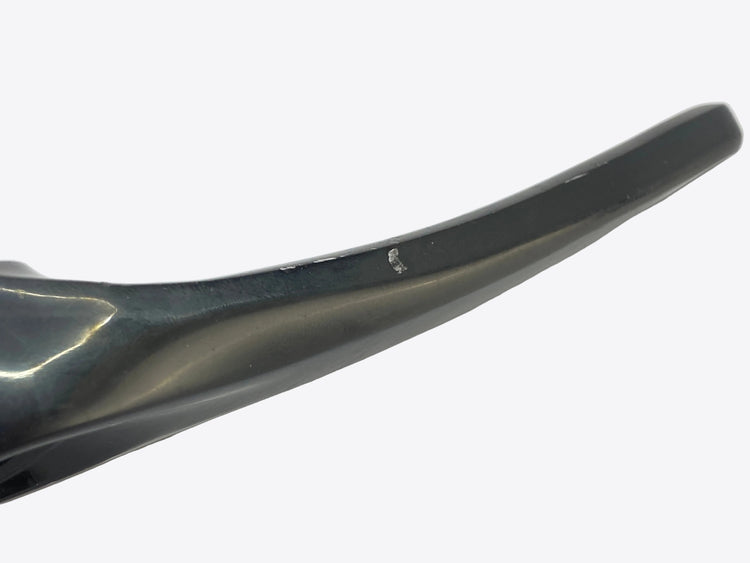

  • side view of the left arm
1 10

Shimano

Shimano XTR M9020 Crankset 170mm 1x 30t

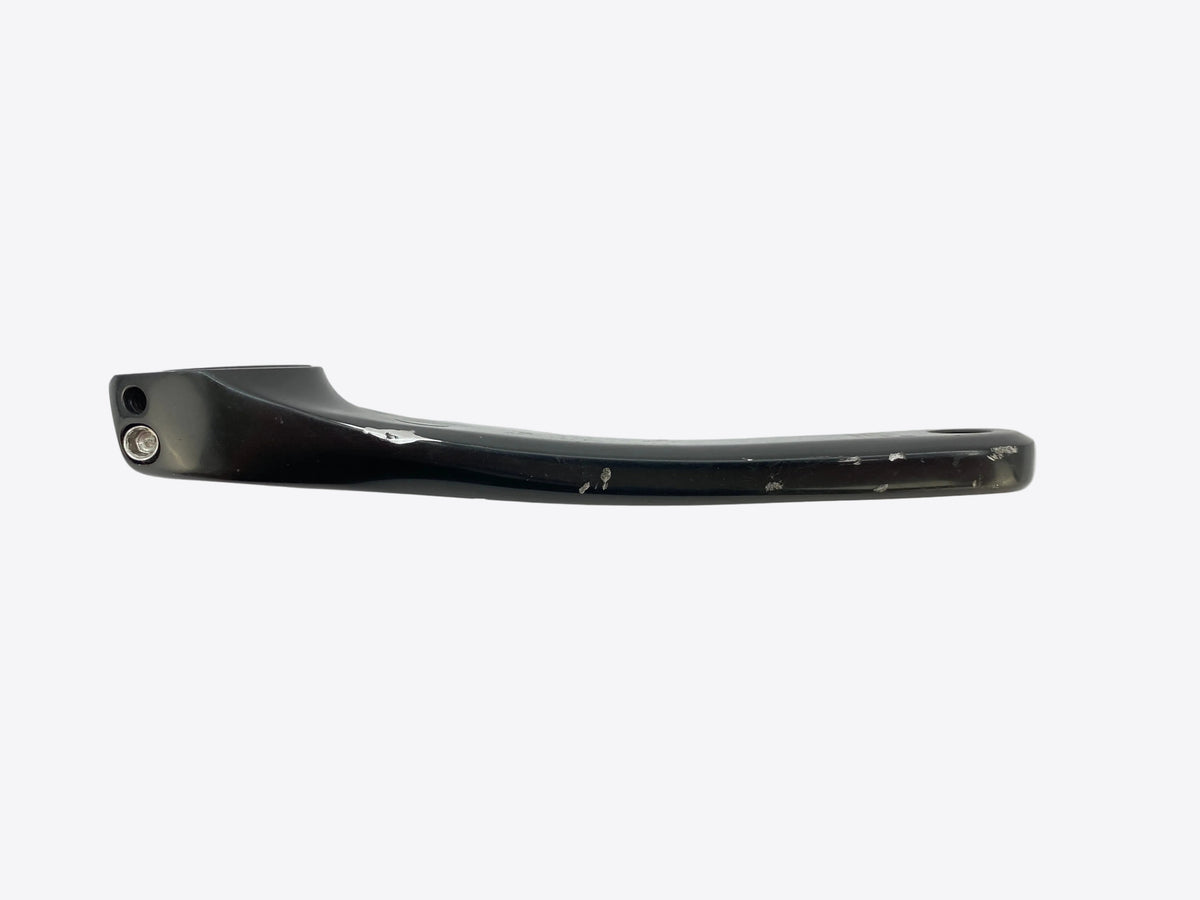

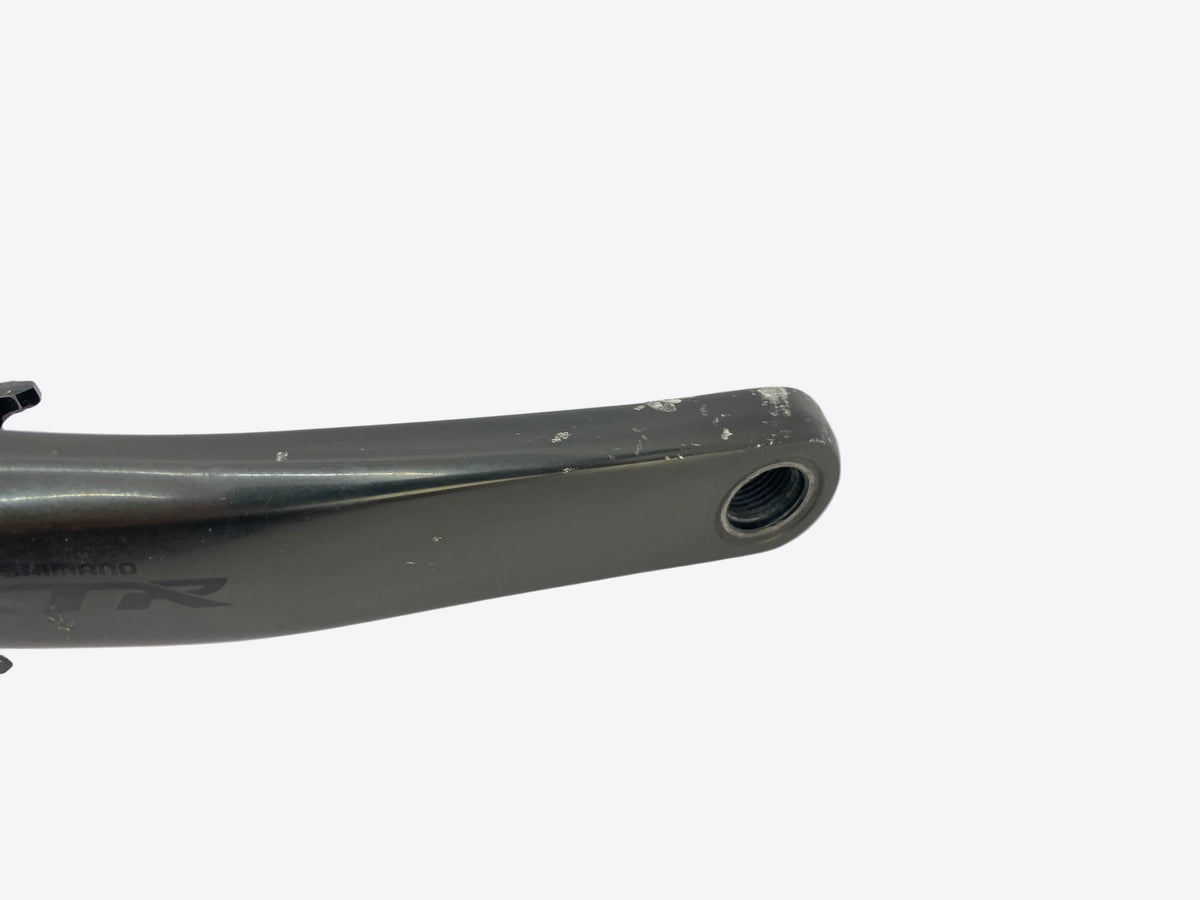

Shimano XTR M9020 Crankset in fair to good condition. Scratches on arms as shown. Wolftooth Powertrac chainring shows light to moderate wear. Includes spindle nut and spacers.


Tech Specs:

  • Model:M9020-1 (Trail / Enduro version)
  • Crank Arm Length: 170mm
  • Drivetrain Compatibility: 11-speed
  • Chainring Setup: 1x (Wolftooth Powertrac Dropstop A installed)
  • Bolt Circle Diameter (BCD): 96mm (Shimano asymmetric 4-bolt pattern)
  • Q-Factor: 174mm
  • Bottom Bracket Interface: Hollowtech II (24mm spindle)
  • Chainline: 53.4mm (boost 148)
  • Crank Arm Material: Hollow-forged aluminum
  • Weight: ~585g (arms and spindle without chainring/BB)
  • Recommended Bottom Bracket: SM-BB93 (Threaded) / SM-BB94-41A (PressFit)
  • Recommended Use: Trail, Enduro



4229

$60.00 USD
$60.00 USD
